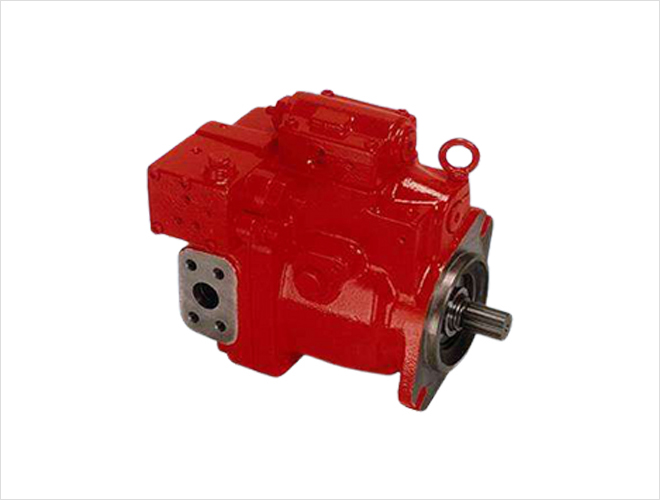

K3VL PUMP

A high-efficiency, high-reliability, low-noise swash plate axial piston pump for industrial machinery.

Features Benefits
Low pulsation, low noise Significantly reduce pressure pulsation, the source of noise,
by applying our proprietary technology
High efficiency, high suction pressure, long life Optimal valve plate design improves efficiency, and durability is enhanced by using
high-load bearings and high-strength piston shoes.
Auxiliary gear pump connection and compound pump SAE standard auxiliary gear pump connection and tandem piston pumping possible
various control methods Unloading and pressure variable control are possible based on load sensing
and constant pressure type.
Specification
Size 28 45 60 80 112 140 200
Displacement [cm3] 28 45 60 80 112 140 200
Pressure
[MPa]		 rated 32 32 25 32 32 32 32
peak 35 35 28 35 35 35 35
Speed
[min-1]		 max. for self-priming 2,750 2,700 2,400 2,400 2,200 2,200 1,800
max. 3,000 3,250 3,000 3,000 2,700 2,500 2,000
Mass [kg] 25 25 25 35 65 65 95
Quantity of oil to
fill pump case		 0.6 0.6 0.6 0.8 1.5 1.5 2
Maximum allowable
total input torque		 225 225 225 400 980 980 1,000
Permissible through drive torque SAE A 64 61 61 61 61
SAE B 203 203 203 203 203
SAE B-B 225 225 225 225 225
SAE C - 400 400 400 400
SAE D - - 669 669 669
SAE E - - - - 1,000
Temperature range [℃] -25 ~ 95
Viscosity range [mm2/s] 10 ~ 1,000
Application Excavator, Wheel loader, Crawler, Crane, Truck, Concrete pump car, Press machine, Tractor, Ship etc.
K3VG PUMP

산업기계용 고효율, 고신뢰성, 저소음의 사판식 액시얼 피스톤펌프입니다.

Features Benefits
High pressure/long life Long life by applying high load capacity bearing and shoe wear compensation function
low noise A swash plate support structure that suppresses vibration is added.
A unique casing structure with small size and high rigidity realizes low noise.
Excellent efficiency and self-priming performance A stable rotational shape of the cylinder can be obtained
by improving the hydraulic balance by using a spherical valve plate.
various control methods Equipped with various control methods using hydraulic pressure and electricity
(flow control, pressure control, horsepower control)
auxiliary gear pump Gear pumps of various sizes can be installed as an option
Specification
Size 63 112 180 280 180DT 280DT
Displacement [cm3] 63 112 180 280 180DT 280DT
Pressure rated 34.3
max 34.3
peak 39.2
Speed
[min-1]		 rated 1,800 1,200 1,800 1,200
max. for self-priming 2,600 2,200 1,850 1,600 1,850 1,600
max. 3,250 2,700 2,300 2,000 2,300 2,000
Mass [kg] 48 68 86 160 160 300
Hydraulic fluid Type Mineral wear-resistant hydraulic fluid
Oil temperature range [℃] -20~80
Oil viscosity range [mm2/s] 10~1,000
Contamination level Under NAS 9
Filtration Suction line 150 messi
Return line Nominal 10 ㎛
Application Molding machine, Press machine, Deck machinery etc.
